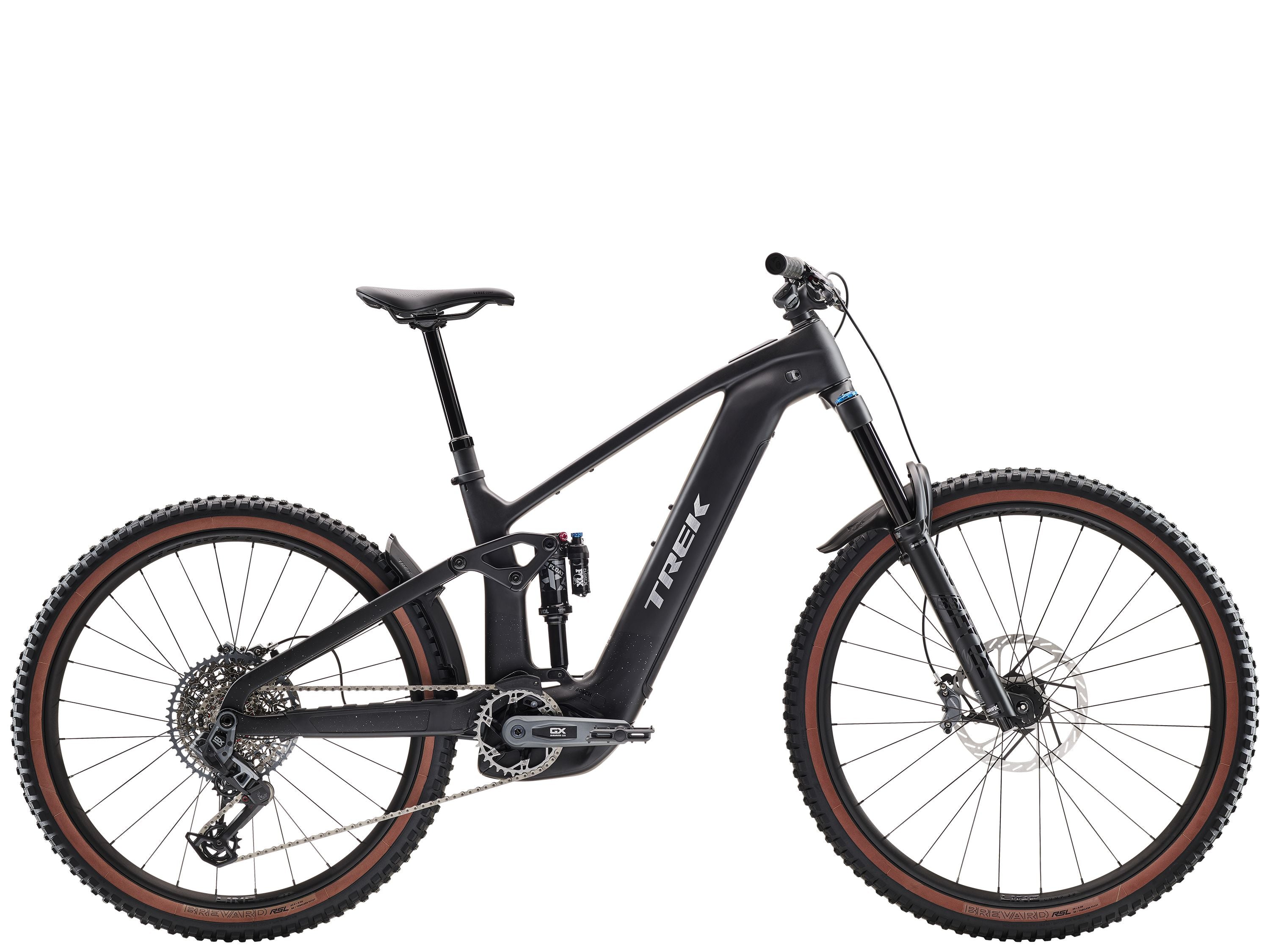

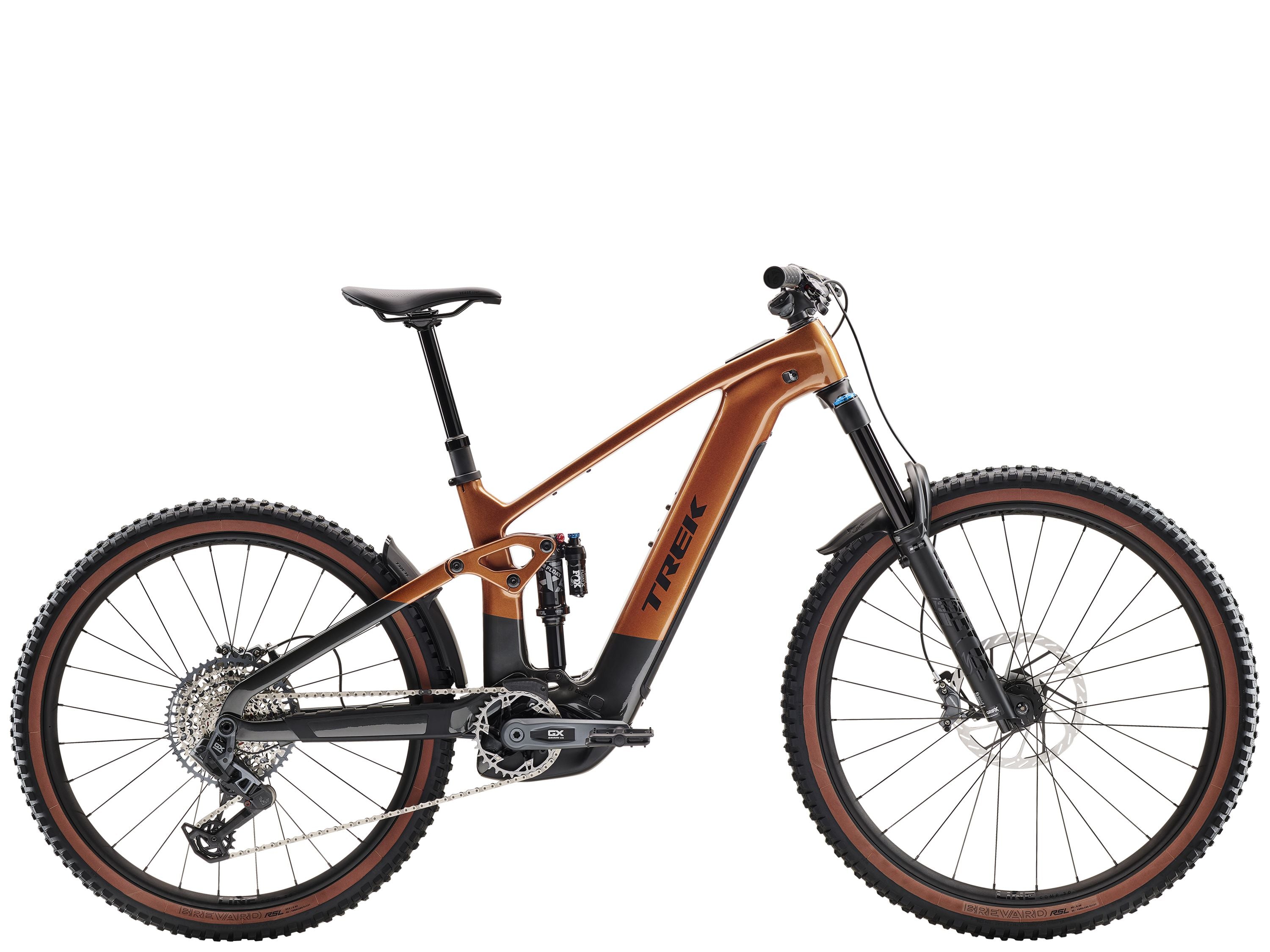

Trek Rail+ 9.8 GX AXS T-Type Gen 5
- Rail+ delivers adventure with plenty of travel and power for getting after epic rides that take you peak to peak or chasing endless enduro laps
- You get upgrades where they matter, like a wireless SRAM transmission and RockShox suspension package
- You can tweak your geometry and suspension leverage rate for how you ride, and add in adjustable angle headset cups (sold separately) for even more adjustability
- Want even more boost? With the Bosch e-Bike Flow app, you can increase torque to 100Nm and peak power up to 750W.
- The massive 800Wh RIB 2.0 battery supports you for big miles and can be easily removed for travel or storage, and is compatible with PowerMore for even bigger rides
Bosch Performance Line CX motor: 100Nm upgrade ready
Bosch Performance Line CX sets the standard for eMTB performance with 85Nm of torque out of the box, but can be tuned all the way up to 100Nm and 750 watts of power using the Bosch eBike Flow app. The Bosch Smart system also has intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain. *O aplicativo eBike Flow não está disponível no Brasil.
New RIB 2.0
Removable Integrated Battery (RIB 2.0) makes it easy to remove your battery for more convenient charging or traveling, and you don't have to worry about dropping it thanks to a secondary safety catch.
Extend your ride
Wanna take your ride even farther? Pair a 250Wh PowerMore range extender with your bike to chase your most epic adventures.
Bosch Mini Remote
The compact, ergonomic Mini Remote lets you easily change assist level, activate Walk mode, or turn on optional lights, all without moving your hand off the handlebar. Plus, it's wireless and connects with your System Controller via Bluetooth
Mixed wheel size
You get a 29" front wheel for monster truckin' over stuff, with a smaller 27.5" wheel out back for getting rowdy.
Adjust the suss for full send
Adjust leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when you're hitting big features and don’t want to bottom-out, or when you want to run a coil shock.
| Frame | OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel |
| Fork | Fox Performance Elite Float 38, Float EVOL air spring, GRIP X damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt-X axle, 160mm travel |
| Shock | Fox Performance Elite Float X, 2-position damper, 205mm x 65mm |
| Wheel Front | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5'' |
| Wheel Rear | Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5'' |
| Tire | Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50'' |
| Tire Part | Bontrager TLR sealant, 6oz |
| Rim Strip | Bontrager TLR |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
| Shifter | SRAM AXS POD |
| Rear Derailleur | SRAM GX Eagle AXS, T-Type |
| Crank | SRAM GX, 160mm length |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12 speed |
| Chain | SRAM GX Eagle, T-Type, 12 speed |
| Chainring | SRAM T-Type, 34T, steel |
| Brake | SRAM Maven Bronze 4-piston hydraulic disc // SRAM Maven Bronze 4-piston hydraulic disc |
| Brake Rotor | SRAM HS2, 6-bolt, 200mm // SRAM HS2, 6-bolt, 220mm |
| Pedal | VP-536 nylon platform |
| Saddle | Verse Short Comp, steel rails, 145mm width |
| Seatpost | Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width |
| Stem | Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length |
| Headset | Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Fender | Trek custom fender |
| Battery | Bosch PowerTube 800Wh, smart system |
| Controller | Bosch Kiox 400C, mini remote |
| Motor | Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) |
| Charger | Bosch standard 4A, 110V, smart system |
Geometry Chart
| B B Drop | 1.2 |
| B B Height | 34.4 |
| Chainstay Length | 44.6 |
| Eff Seat Tube Angle | 77.9° |
| Eff Top Tube | 56.2 |
| Frame Reach | 43.5 |
| Frame Size Letter | S |
| Frame Size Number | 15.5" |
| Frame Stack | 59.8 |
| Head Angle | 65.0° |
| Head Tube Length | 10 |
| Offset | 4.3 |
| Position | High |
| Seat Tube | 38 |
| Seat Tube Angle | 75.3° |
| Standover | 76.3 |
| Trail | 11.9 |
| Wheelbase | 120.1 |
| Wheel Size | 27.5" |
