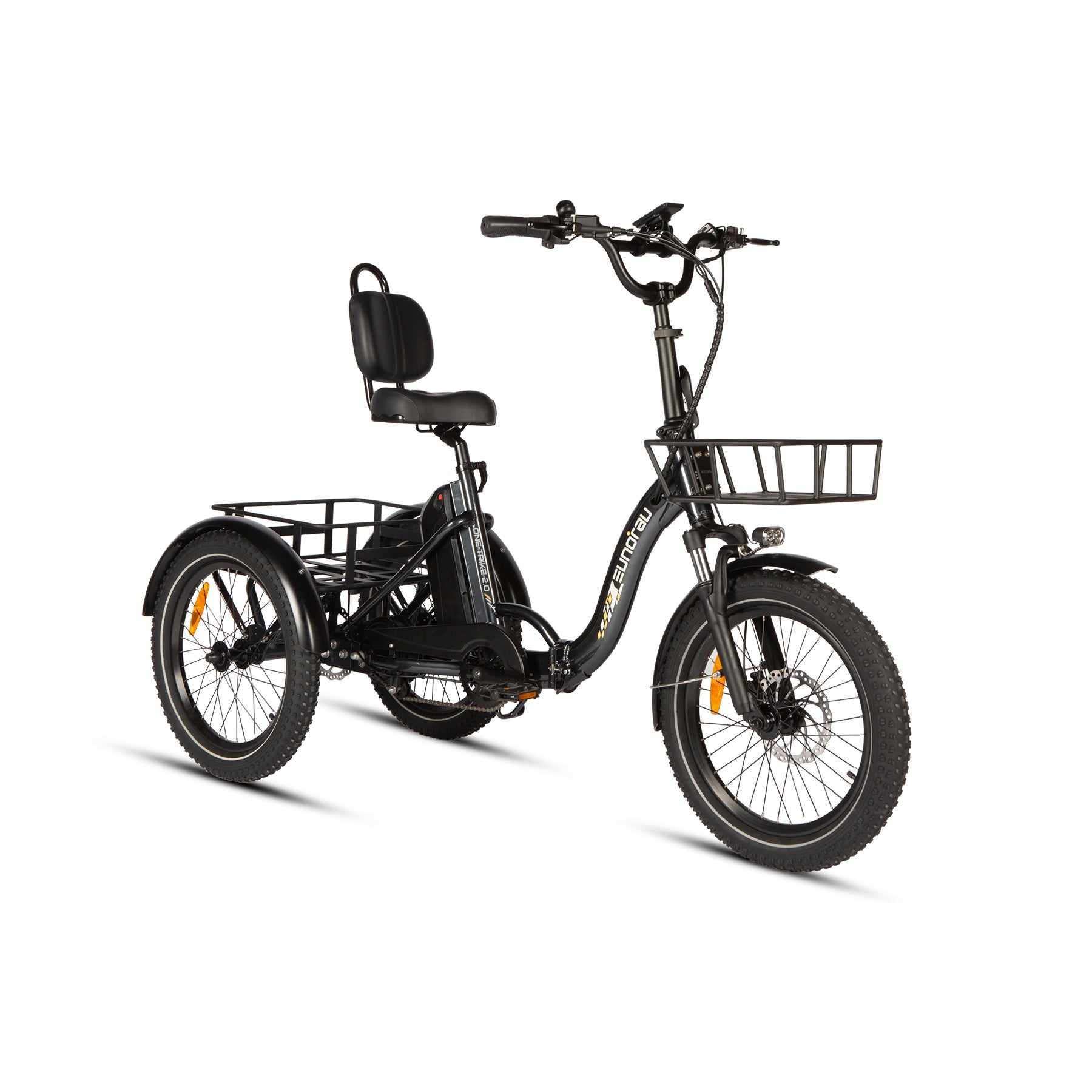

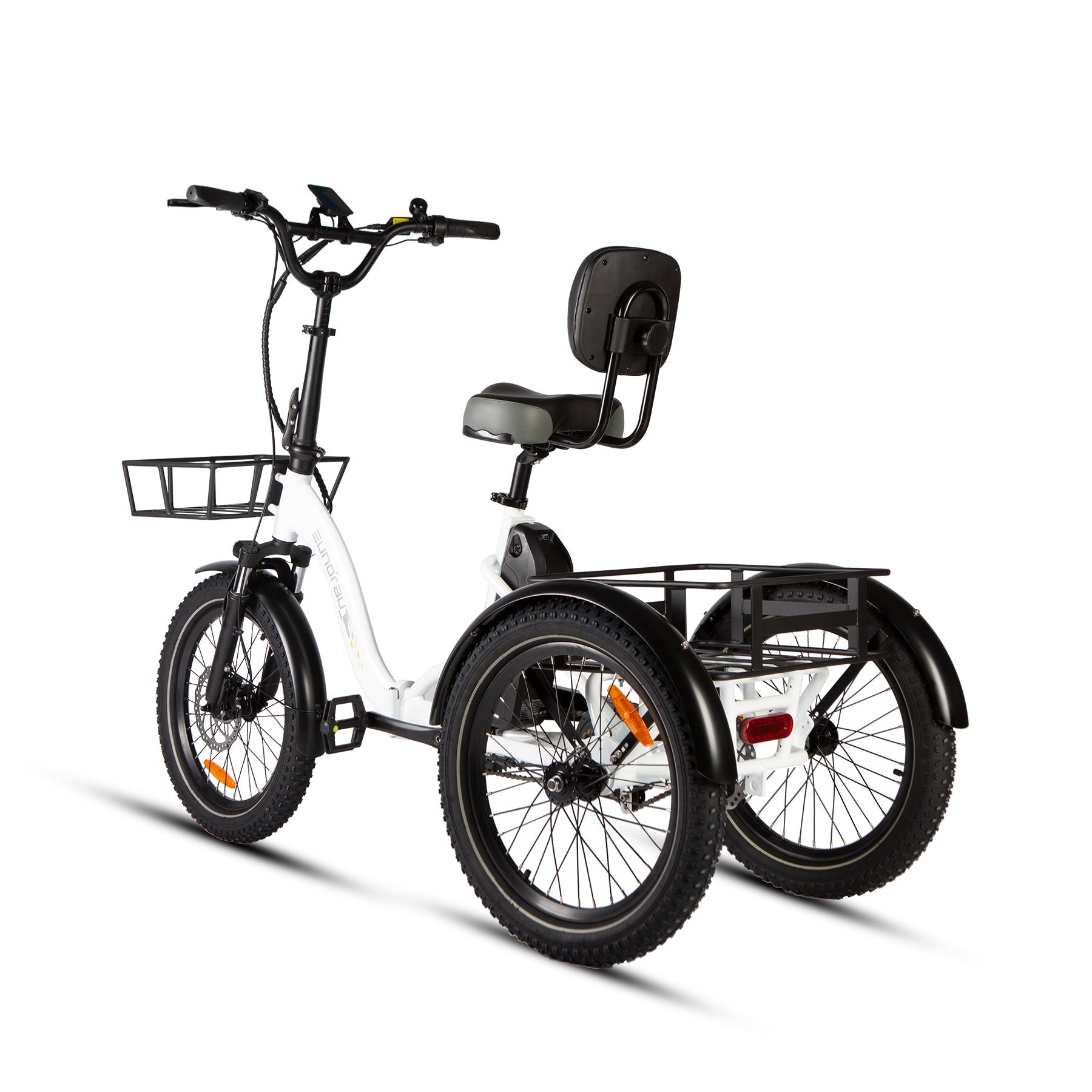

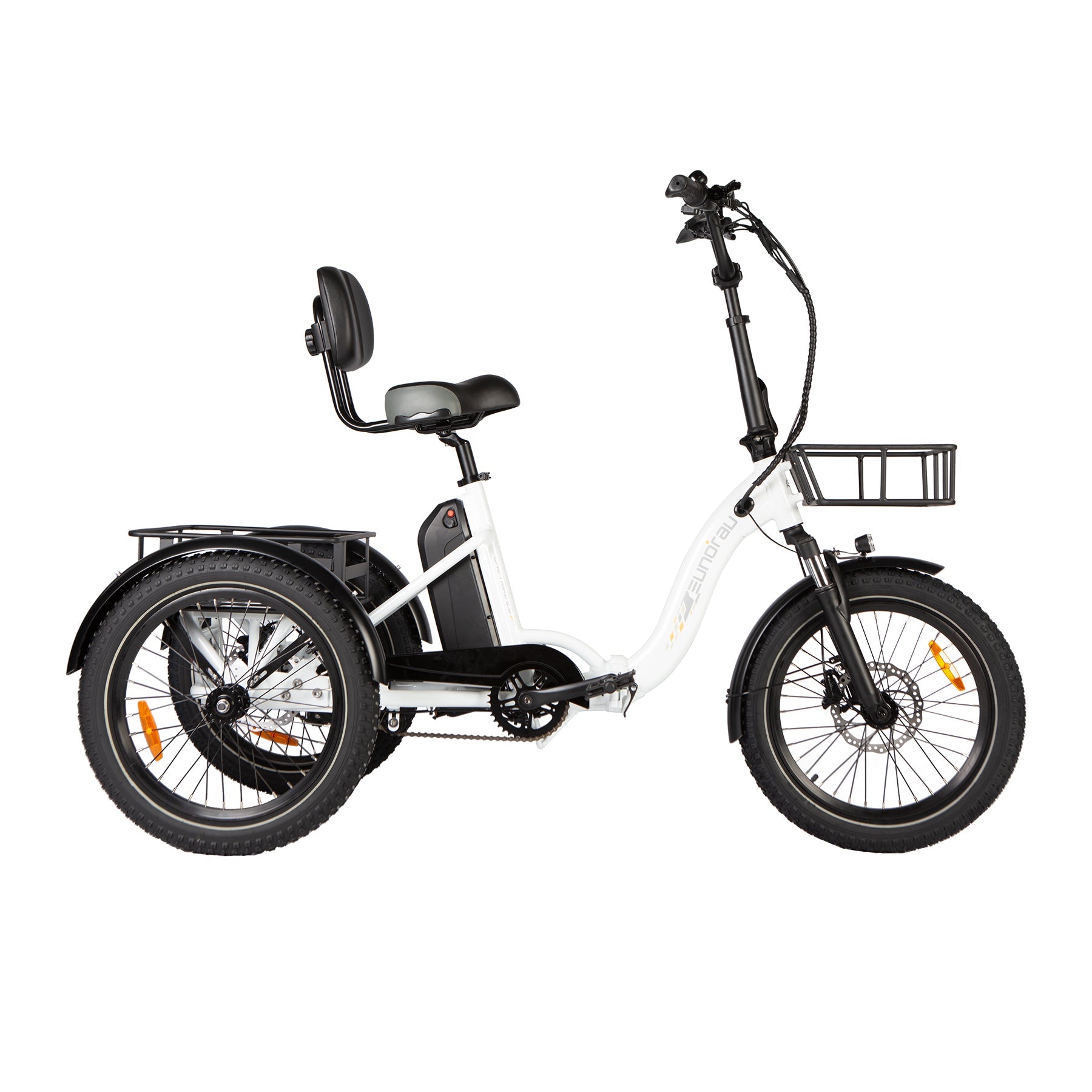

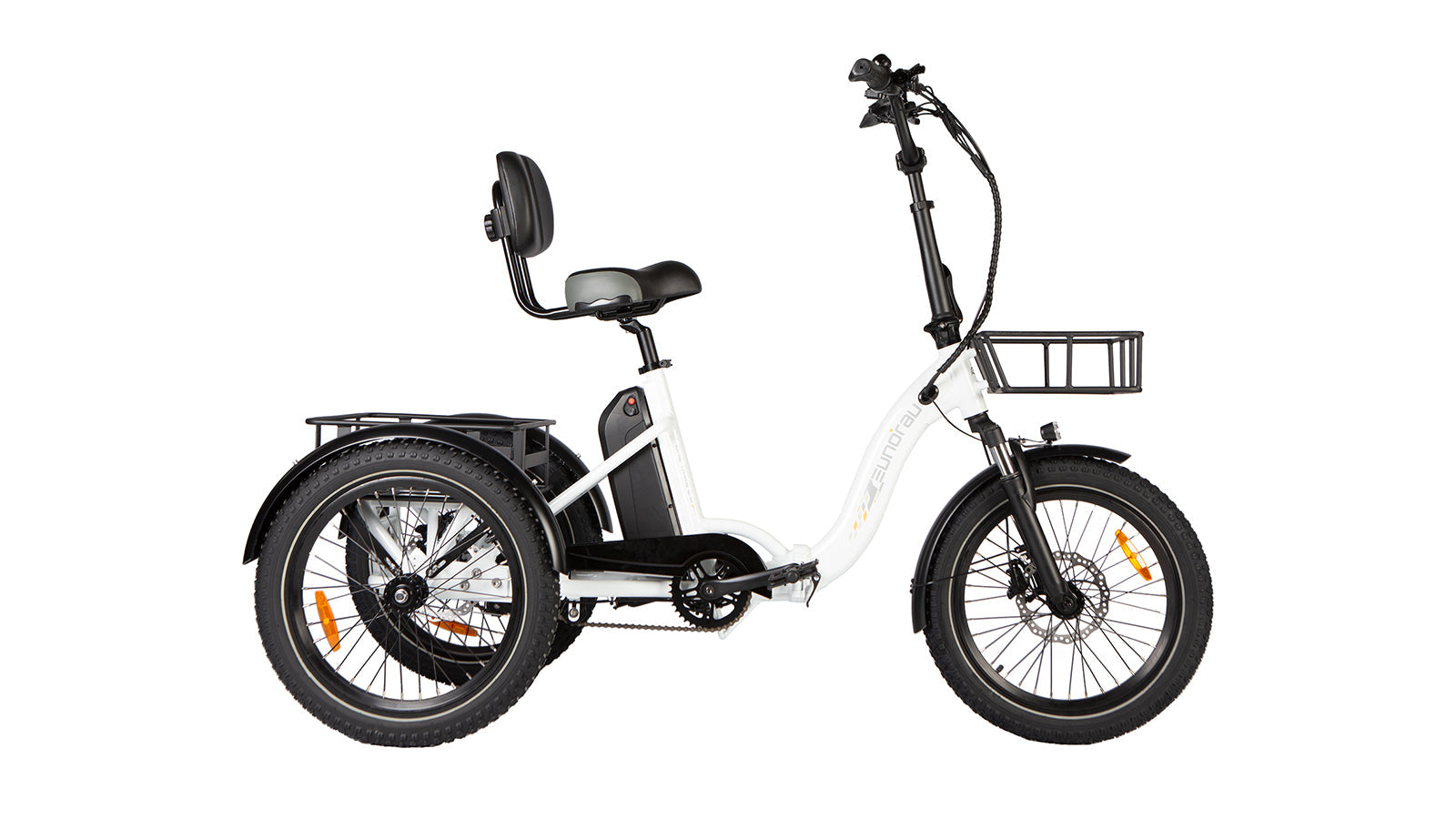

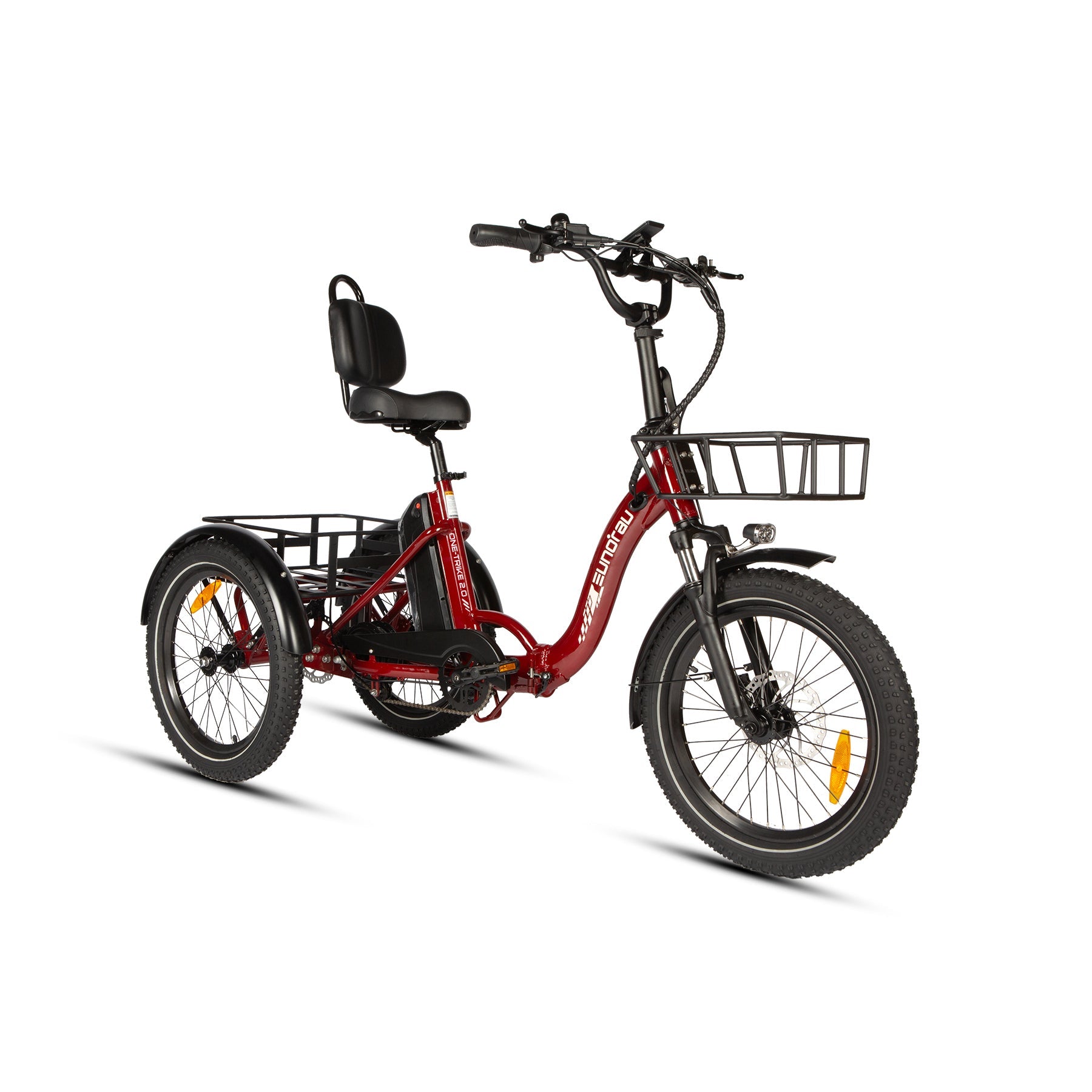

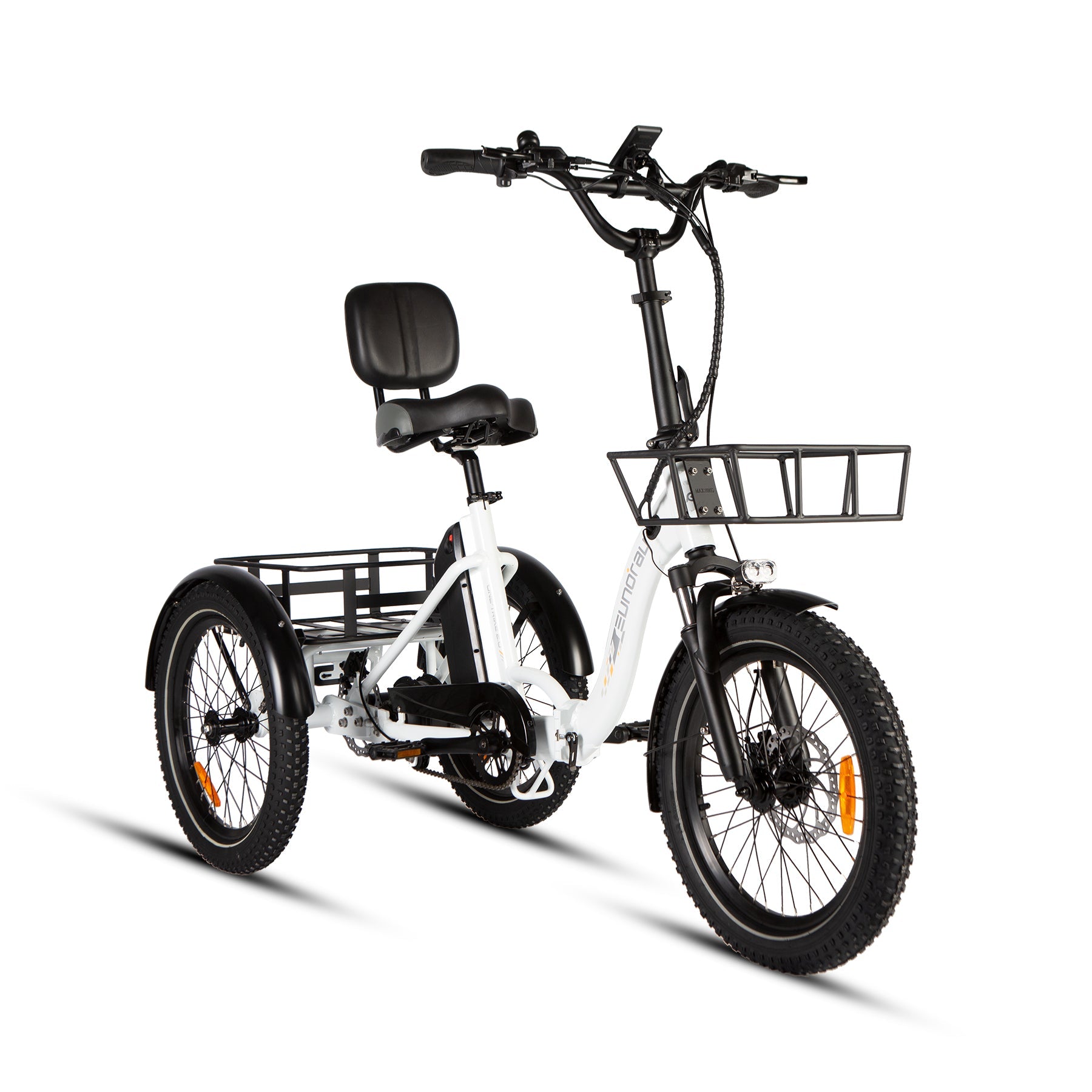

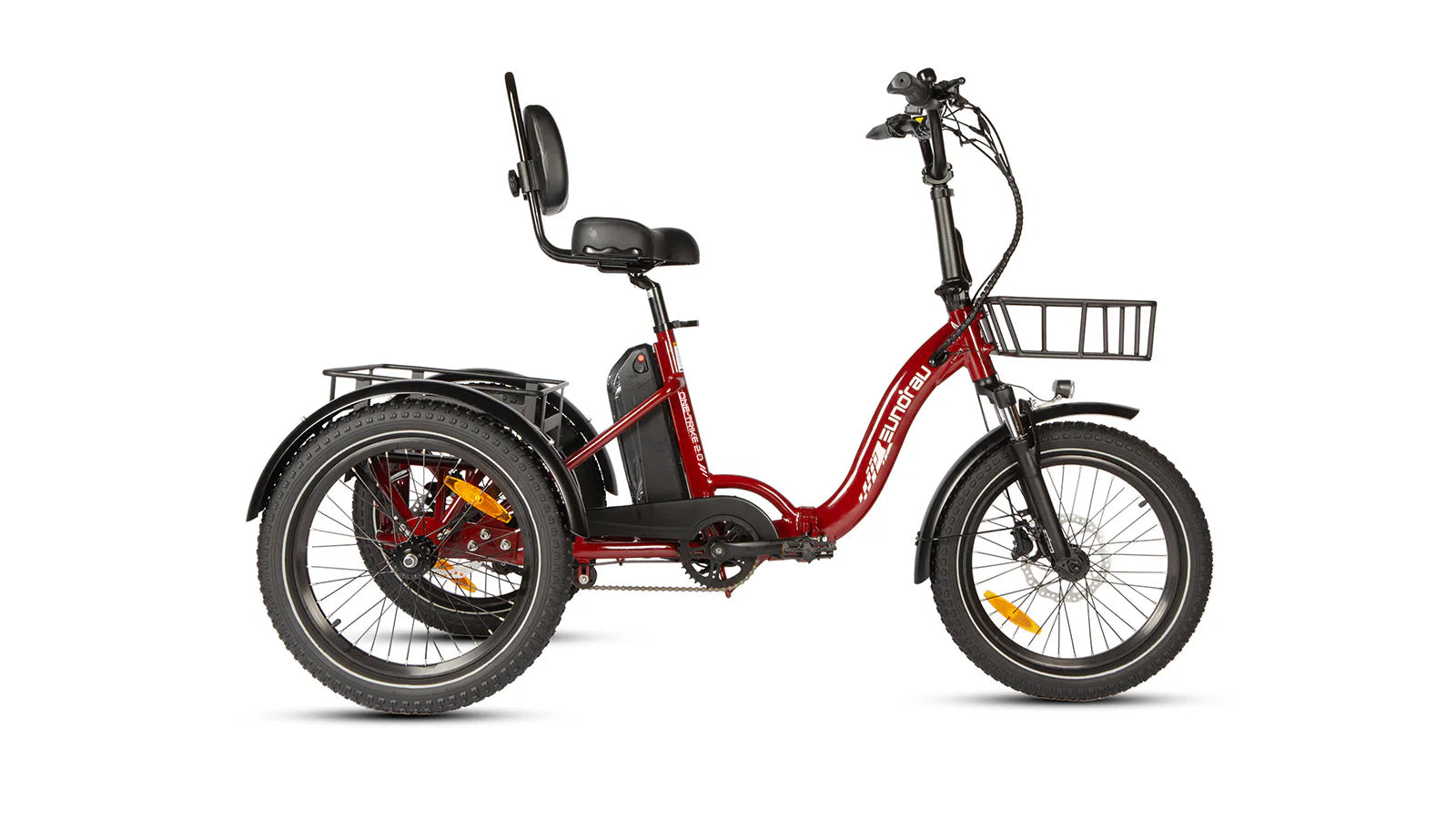

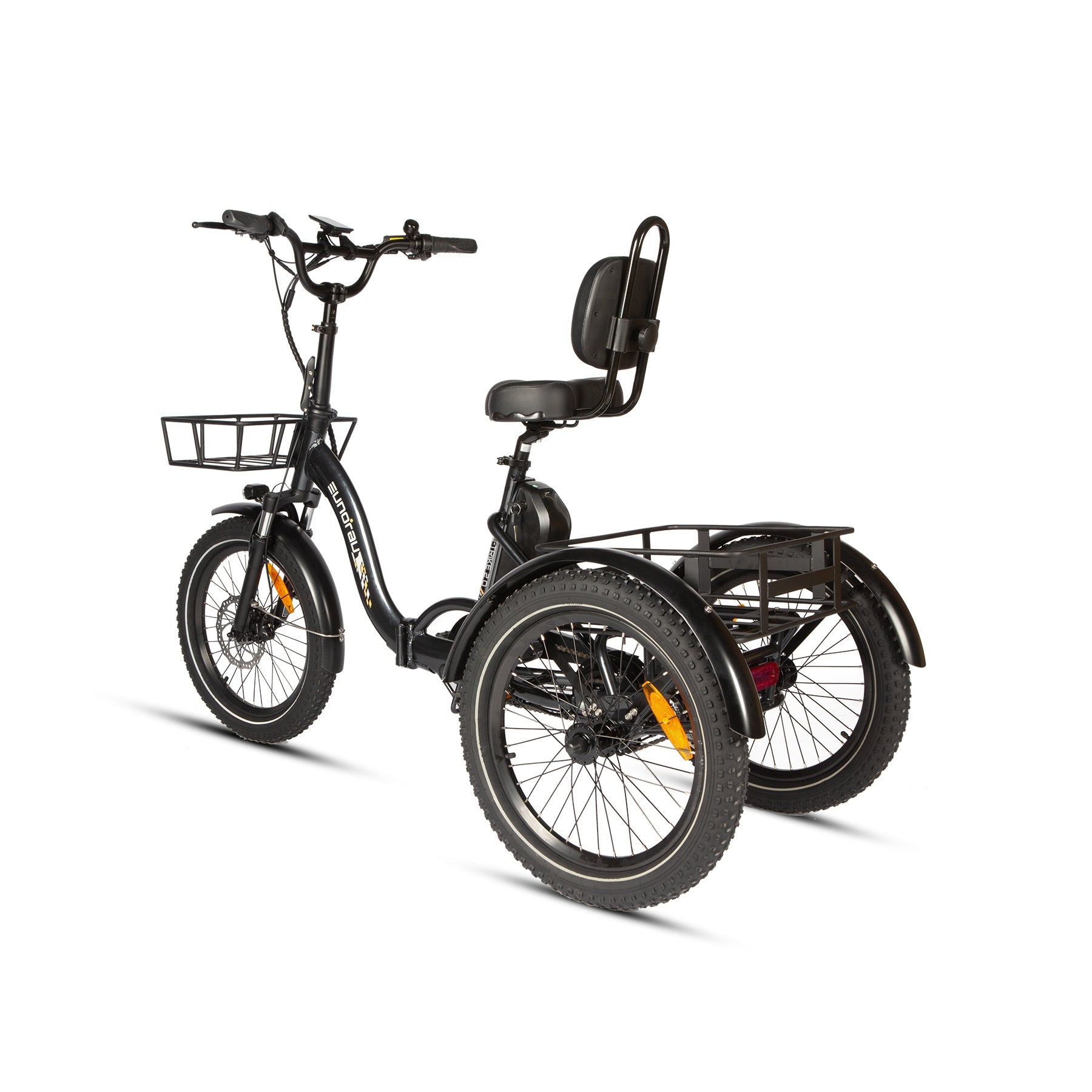

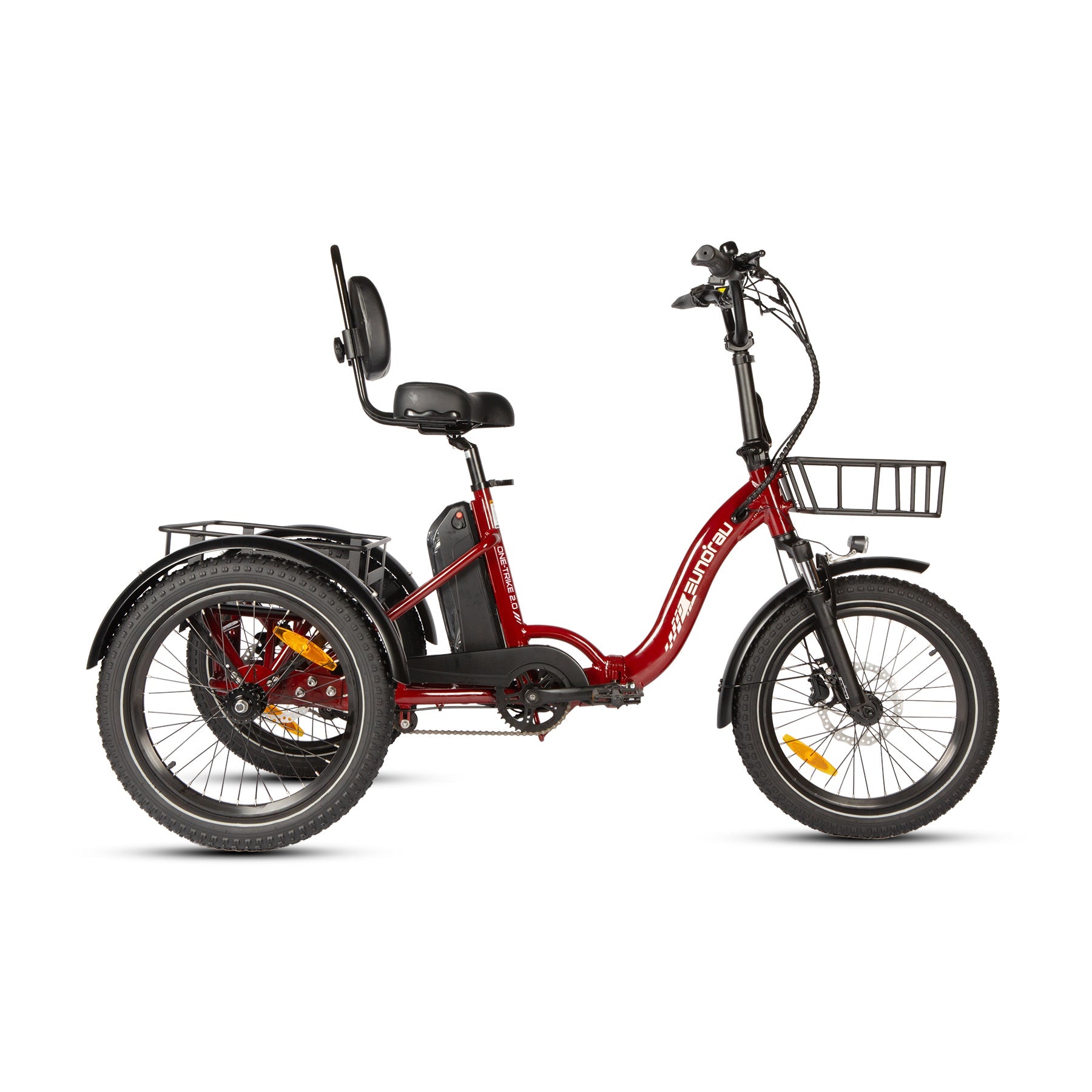

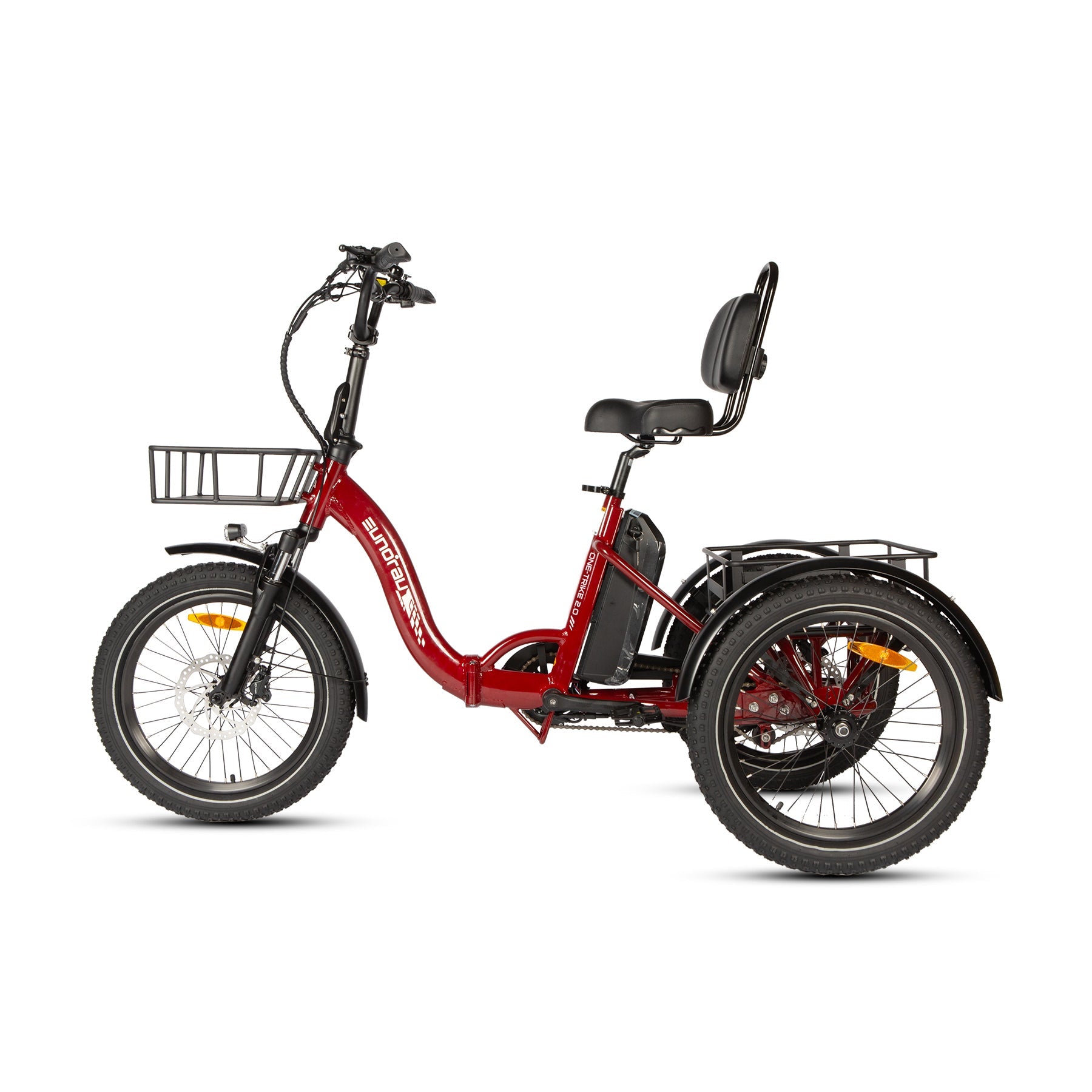

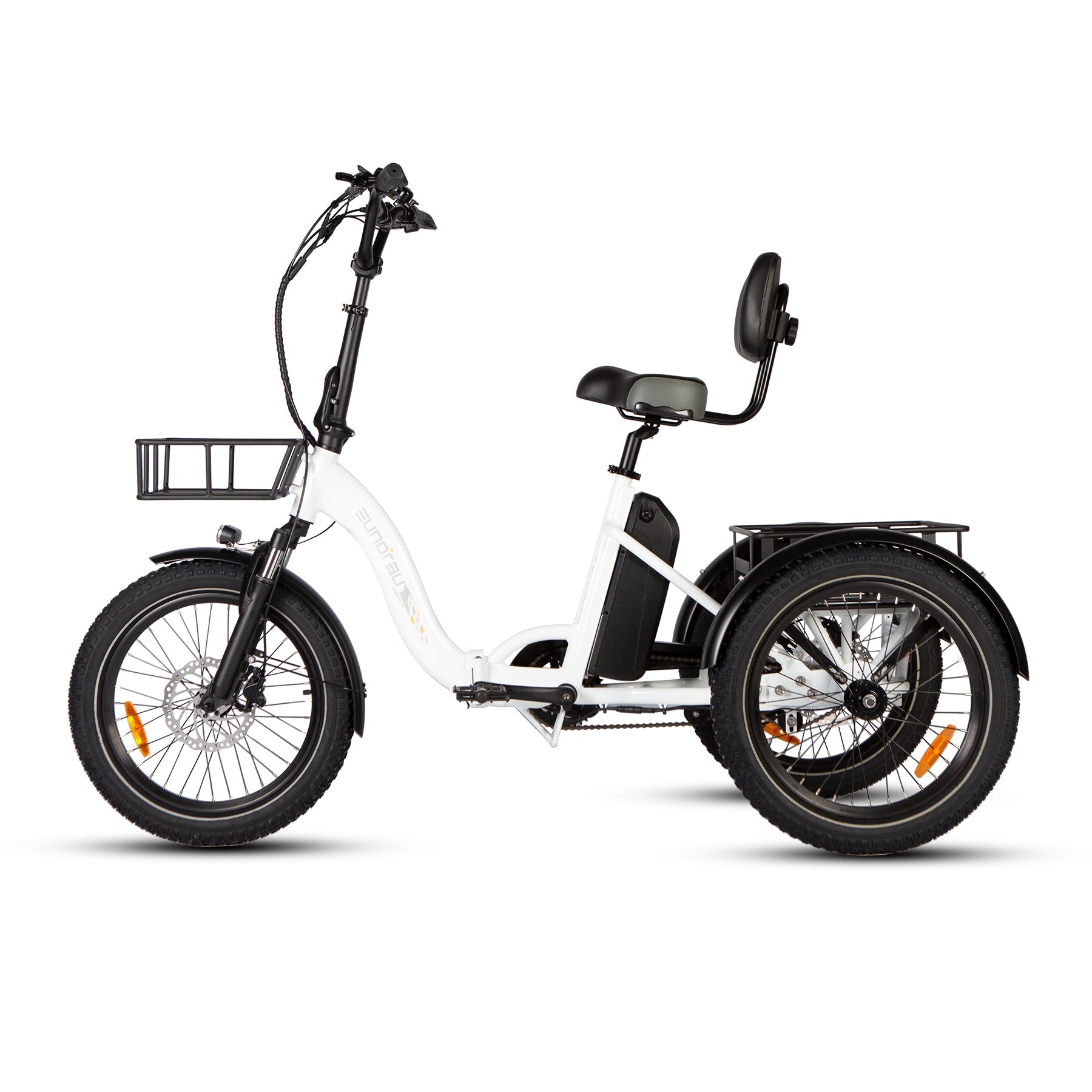

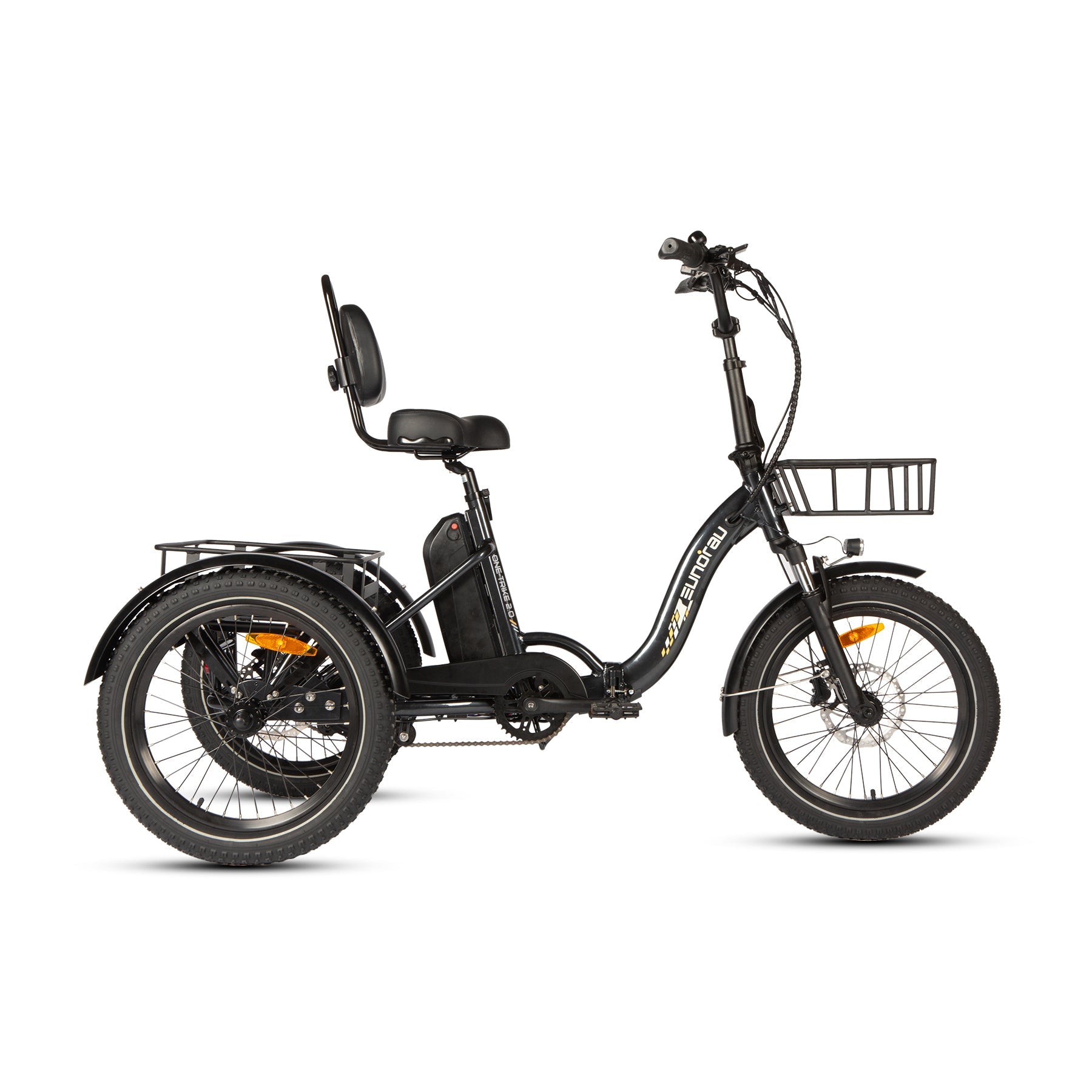

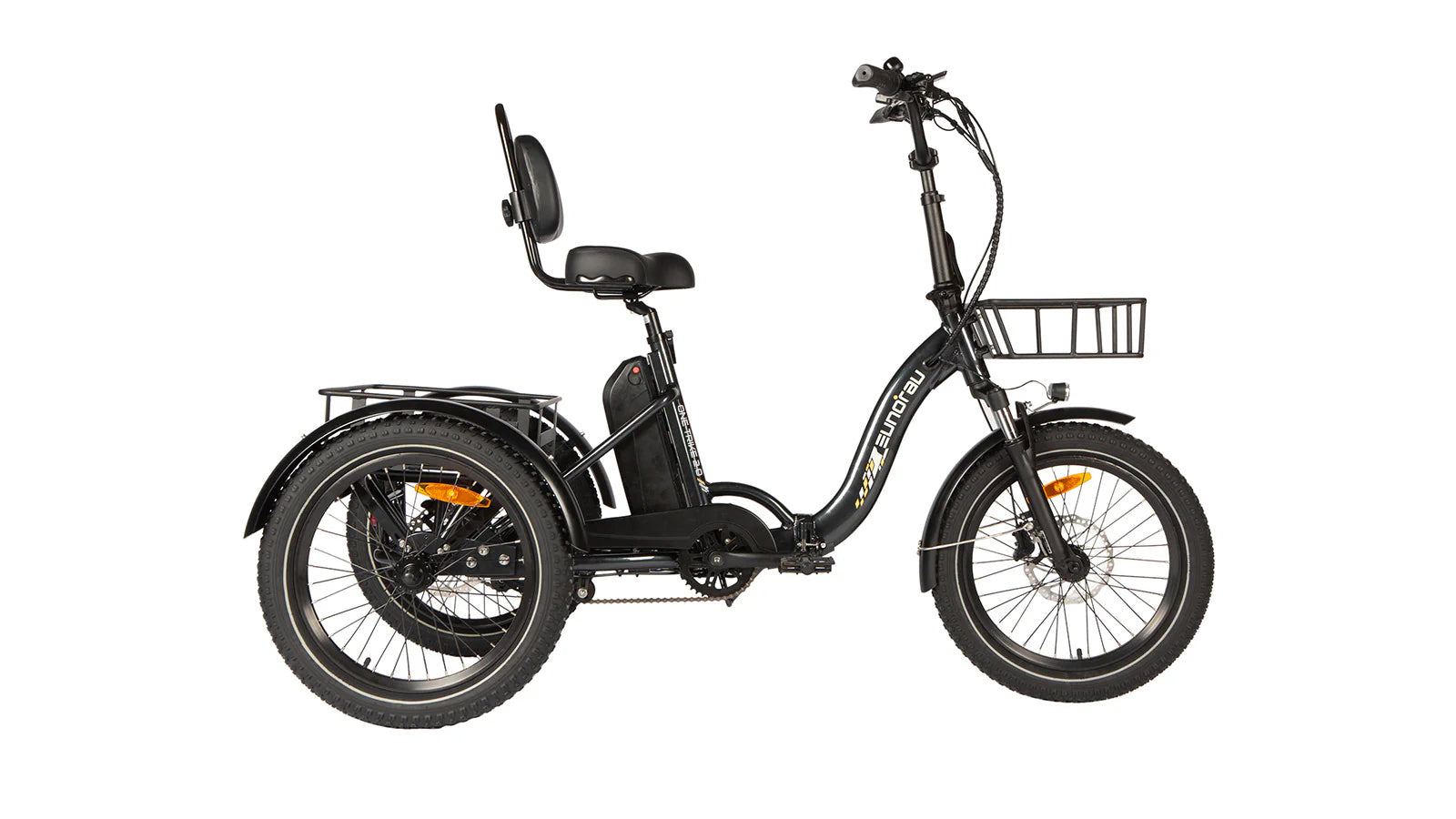

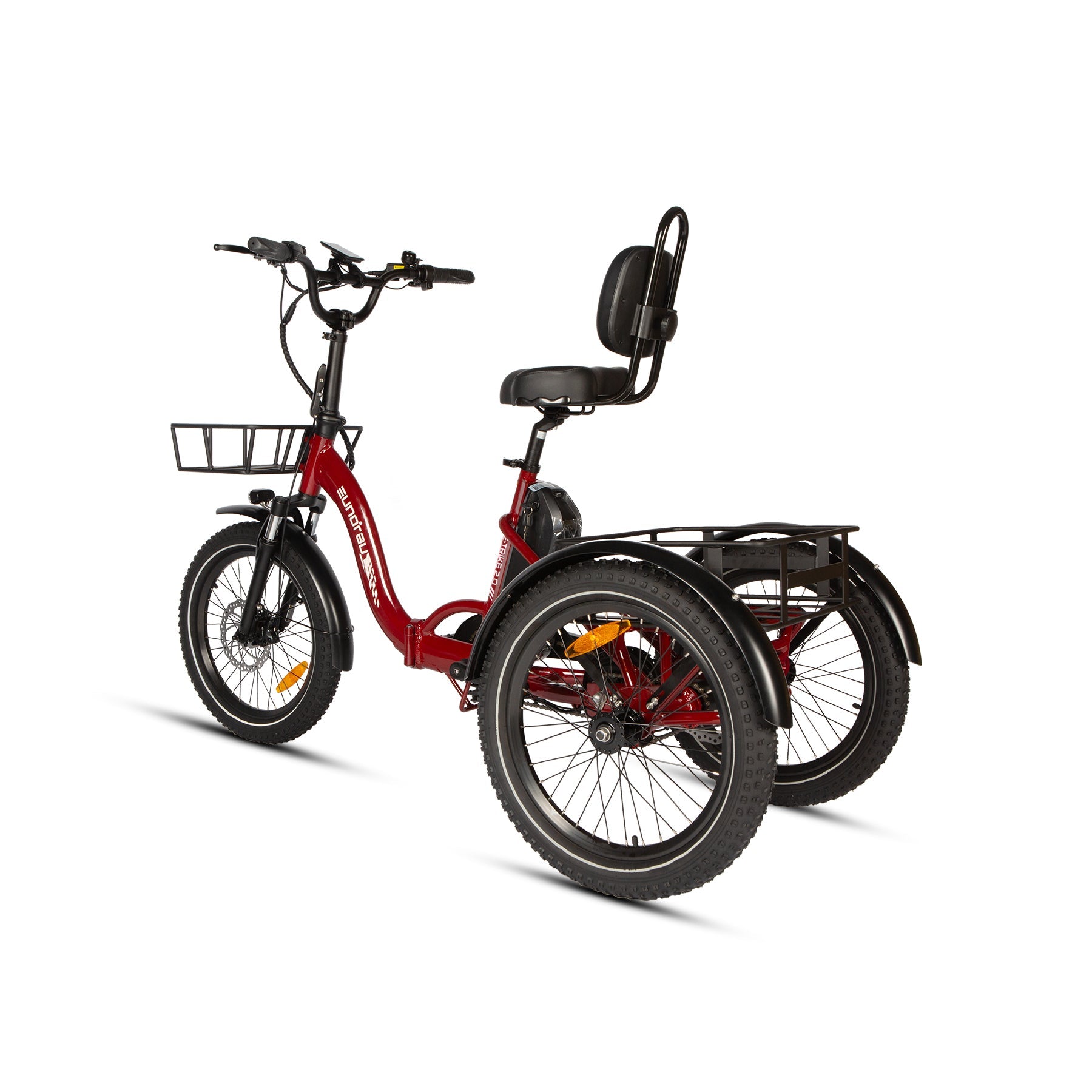

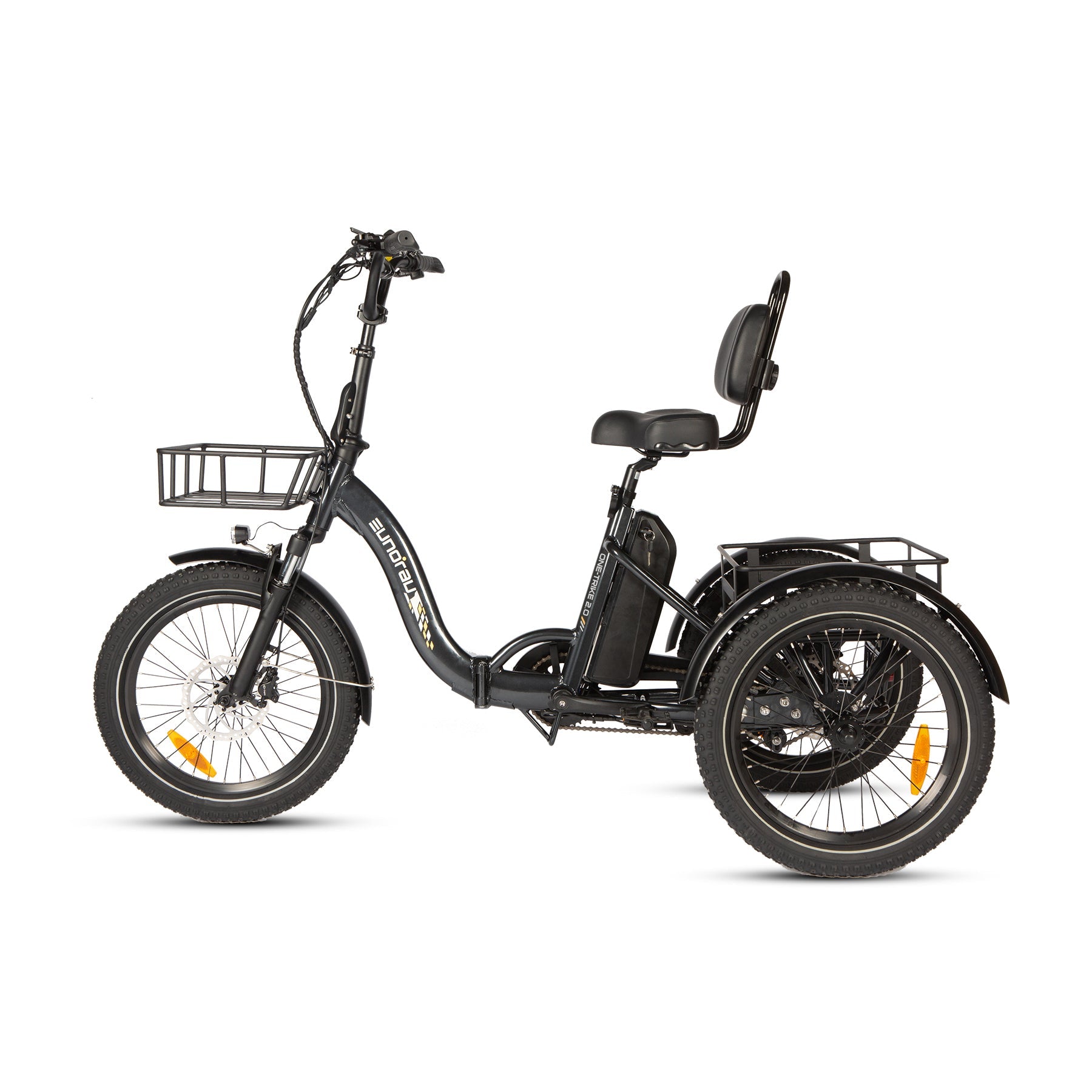

ONE-TRIKE 2.0

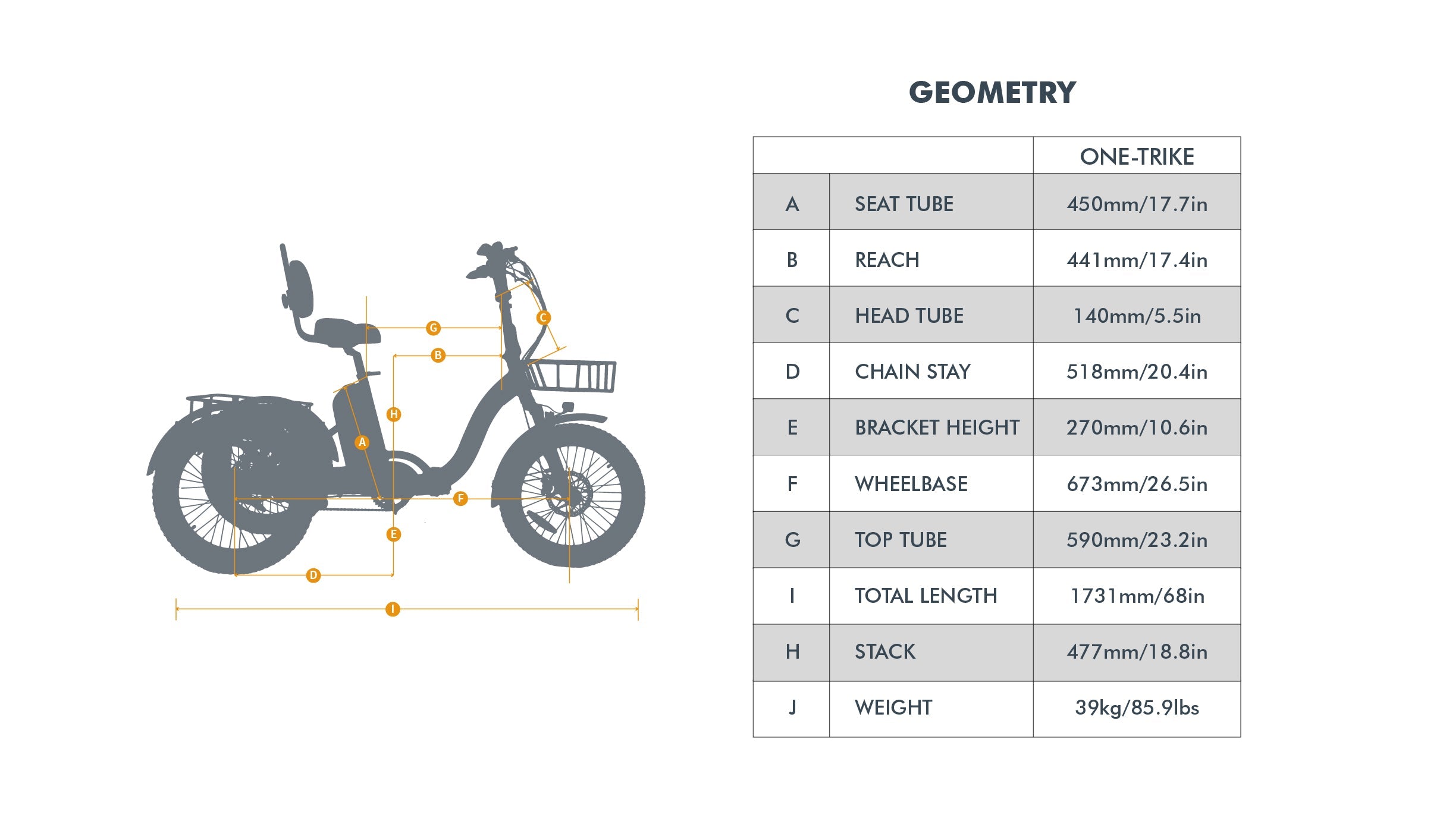

The 20" REAR DRIVE ONE-TRIKE Specifications

Specification

Battery: 48V14.5Ah

Range: 50 Miles

Motor: 48V/500W rear-drive motor with 80 N.m torque

Total Payload Capacity: 440 lbs

Recommended Rider Heights: 5'2" ~ 6'1"

Maximum Speed: 20MPH under speed limited/locked

Charger: US standard 2.0 A smart charger

Controller: 48V 20A

Display: YL-81F Display, UART protocol

Weight: 85.98 lbs

Pedal Assist Intelligent: 0~5 level pedal assist

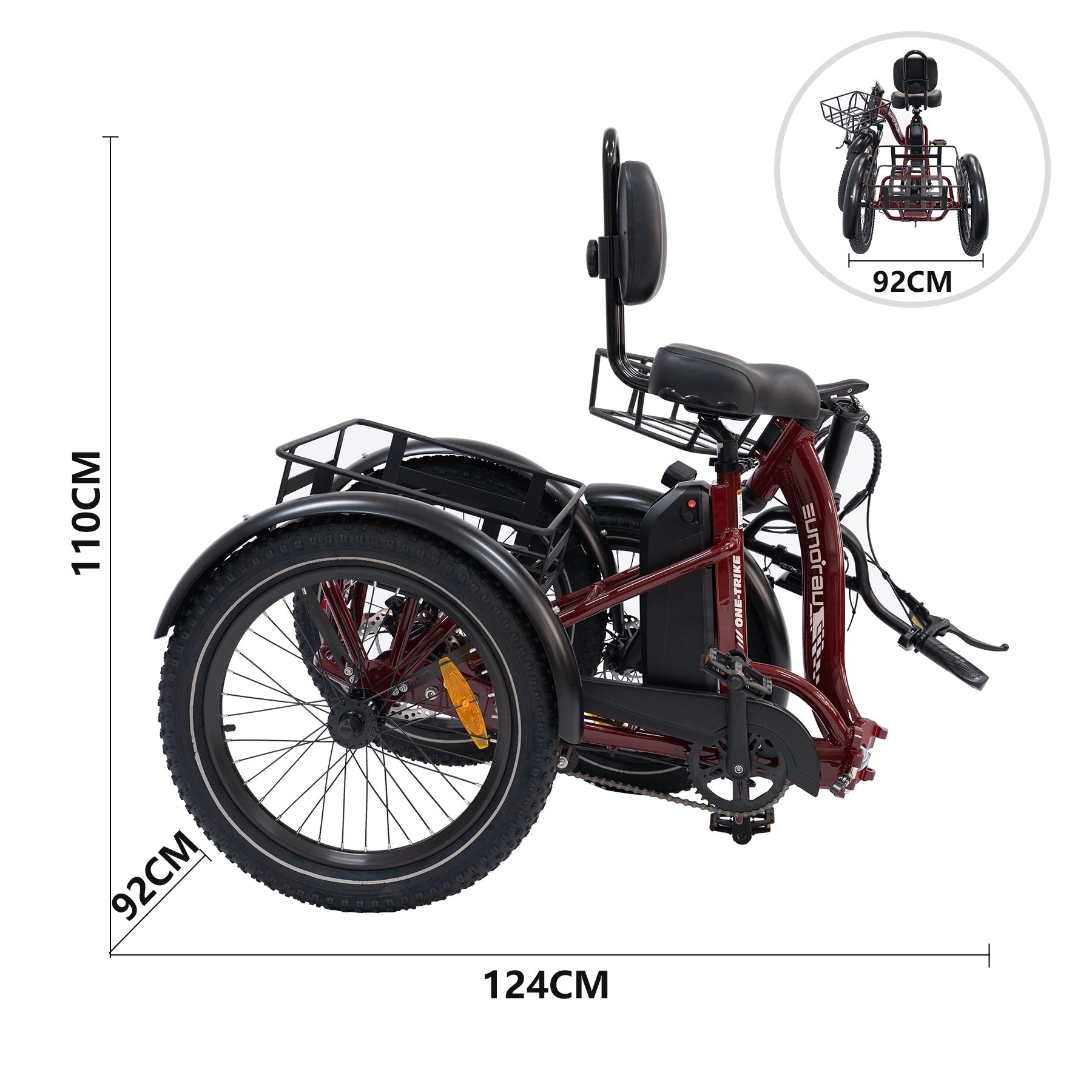

Box Dimensions: (cm) 103 L x 65 W x 74 H

Components

Frame: 6061 Aluminum alloy

Tires: 20" x 2.6" Tires

Handlebar: Adjustable stem for comfort

Fork: Eunorau suspension fork, 40 mm travel

Stem: Folding, 31.8mm clamp diameter

Brake Lever: Hydraulic disc levers with motor cutoff switch

Brake Rotor: EUNORAU design 180 mm disc brakes

Throttle: Half-twist throttle

Shifter: Single speed

Freewheel: 18T single-speed freewheel

Pedal: Aluminum, black

Crank: 165mm Forged alloy

Chainring: 38T Chain-wheel crank

Saddle: Comfort saddle with backrest, seat-to-ground height 32.3” - 38.6”

Rear Light: Integrated brake taillight

Front Light: LED light

Tool: Included
